Product Description:

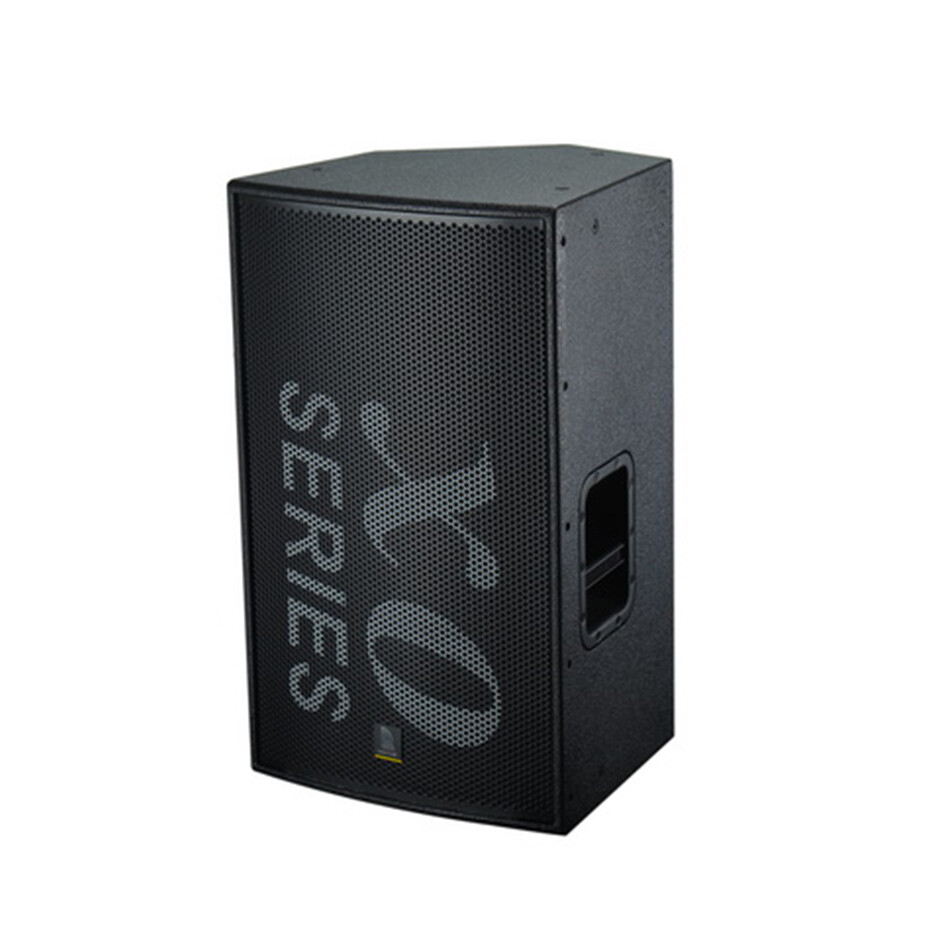

XO-15ND is a single 15-inch built-in two-way speaker developed for mobile performances and high-end multi-functional halls. The woofer uses a Φ100mm voice coil, and the tweeter uses a Φ75mm titanium diaphragm voice coil. Both units are high-temperature resistant NdFeB magnetic circuits, the tweeter is front-loaded with a cast aluminum alloy horn, and the box shell uses 15MM birch glued multi-layer plywood. The pentagonal structure effectively reduces the resonance of the box. The base bracket holes and multi-point hanging hardware are convenient for installation. Use oblique insertion and concealed cast aluminum terminals to increase the life of the equipment (patent project).

Suitable places: recording studios, performing arts, music appreciation and karaoke places with high sound quality requirements.

Product parameters:

Rated power (W): 600

Impedance (Ω): 8

Diffusion angle: 80×50

Sensitivity (dB): 100

Maximum sound pressure level (dB): 129

Frequency response (Hz): 40-19K

Box material: 15MM birch glued multilayer plywood

Box size (W×D×H): 446.9×443×737

Packaging size (W×D×H): 590×590×805

Packaging volume (m3): 0.28

Net weight (kg): 30

Gross weight (kg): 33.3

Suspension: Yes
