Product Description:

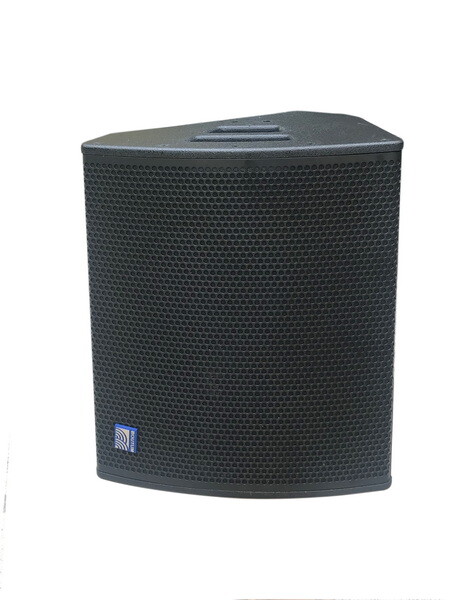

M4 is a high-performance two-way stage return speaker. It uses a 15-inch coaxial unit, accurate physical phase, 75mm low frequency plus 75mm high frequency speaker, and built-in crossover network.

The natural placement upward angle is 45°, suitable for use at a distance of 1.5~3.5 meters. There are 2 molded ABS anti-slip blocks at the bottom of the speaker to prevent the box from moving and reduce scratches on the box.

There is a 35mm branch pipe socket in the handle for easy support. At the same time, there are 2 10mm screw holes on the two sides of the board, which can be hung and the pitch angle can be adjusted.

Product parameters:

Rated power (W): 400

Impedance (Ω): 8

Diffusion angle: 90x90

Sensitivity (dB): 100

Maximum sound pressure level (dB): 125

Frequency response (Hz): 55-17.5K

Box material: 15mm plywood

Box size (W×D×H): 580x364x505

Unit structure (mm): LF:75Fe HF:75Fe
