Product Description:

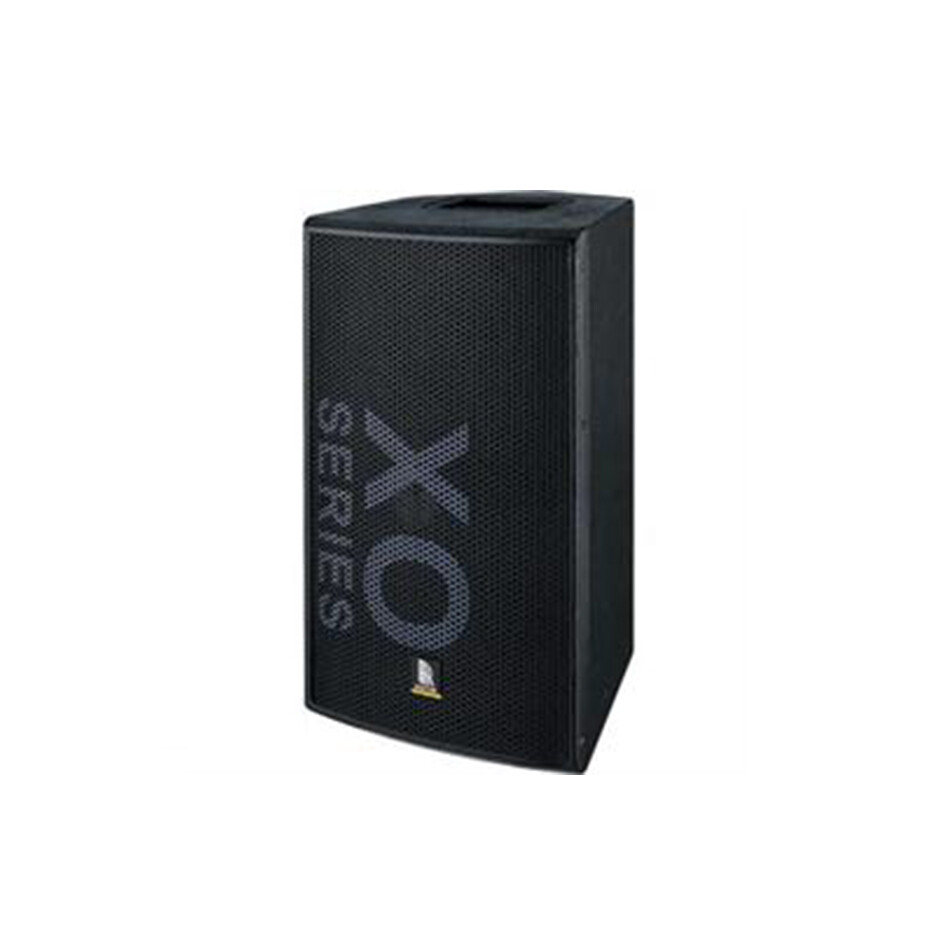

XO-12ND is a single 12-inch built-in two-way speaker developed for mobile performances and high-end multi-functional halls. The woofer uses a Φ75mm voice coil, and the tweeter uses a Φ44mm titanium diaphragm voice coil. Both units are high-temperature resistant NdFeB magnetic circuits, the tweeter is front-loaded with a cast aluminum alloy horn, and the box shell uses 15MM birch glued multi-layer plywood. The pentagonal structure effectively reduces the resonance of the box. The base bracket holes and multi-point hanging hardware are convenient for installation. Use oblique insertion and concealed cast aluminum terminals to increase the life of the equipment (patent project).

Suitable places: recording studios, performing arts, music appreciation and karaoke places with high sound quality requirements.

Product parameters:

Rated power (W): 450

Impedance (Ω): 8

Diffusion angle: 90×60

Sensitivity (dB): 100

Maximum sound pressure level (dB): 128

Frequency response (Hz): 55-20K

Box material: 15mm plywood

Box size (W×D×H): 371×367.5×625

Packing size (W×D×H): 475×475×710

Packing volume (m3): 0.15

Net weight (kg): 21

Gross weight (kg): 23.5

Suspension: Yes
