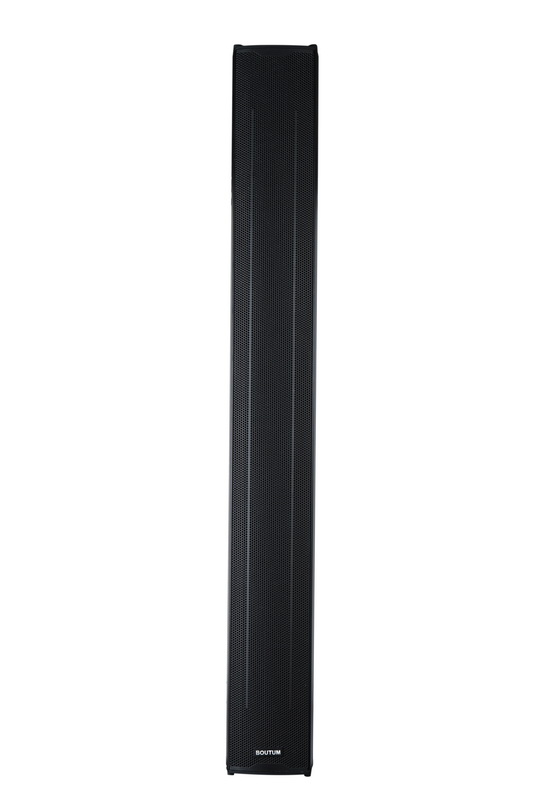

Q608 product parameters

Rated power (W): 700

Impedance (Ω): 4

Diffusion angle: 100×50

Sensitivity (dB): 99

Maximum sound pressure level (dB): 132

Frequency response (Hz): 55-19.5K

Box material: aluminum alloy

Box size (W×D×H): 187X244X1567mm

Unit structure: LF:50ND@6 HF:44ND@2

Packaging volume (m3): 0.14

Net weight (kg): 27

Gross weight (kg): 31

Suspension: Yes

Q608 features:

1. It is composed of 6 6.5-inch 50mm voice coil NdFeB full-range units and 2 44mm compression drive tweeters, and has a built-in passive crossover full-range speaker.

2. The 6.5-inch unit uses a hot-pressed cloth surround, with high power and high sound pressure.

3. The system uses 2.5~6mm aluminum alloy extrusion and stretching, and the surface treatment is sandblasting electrophoresis, waterproof and UV-proof process. The strength is 4.5 times that of wooden shells, corrosion-resistant and has good performance.

4. The internal x and y axis multiple reinforcement ribs use aluminum alloy profiles.

5. There is a dovetail universal long slot on each side, extending outward connection function.

6. There are two sets of power input connectors on the back of each box, which can also be used for box combination.

7. There are multiple screws on the back to facilitate the installation of wall racks.

8. Considering the strength, the aluminum alloy mold is 2.5 times thickened at the speaker and back frame support position.

9. The top and low ends are closed with injection-molded nylon covers. Nylon is a polyamide fiber, which is widely used for its high mechanical strength, good toughness, and excellent properties of collision resistance and wear resistance.

10. Two 8mm screws are prepared for the cover, which is convenient for horizontal linear array combination. At the same time, there is a reserved pipe mouth at the base.

11. It is recommended to use it with Q-450D single 18-inch active subwoofer to make the sound fuller.

Suitable for party bands, theaters, banquet halls, multi-purpose halls, light shows, fashion shows, roadshows, LED large-screen sound amplification, theme parks and other purposes.

Function: 1. Strengthen the rigidity of the shell

2. When hanging, it can be used as a support point

3. External support bracket

4. Connection function when multiple speakers are used in combination

________________________________________

________________________________________

Nylon top cover

Description: Using nylon fiber material (polyamide fiber), with high mechanical strength, good toughness, anti-collision and wear-resistant characteristics, it is very suitable for port sealing.

________________________________________

________________________________________

Slider

Description: The slider can withstand 100kg of tension and can be fixed at any position.

________________________________________

________________________________________

Support bracket

Description: This accessory is convenient for placement
