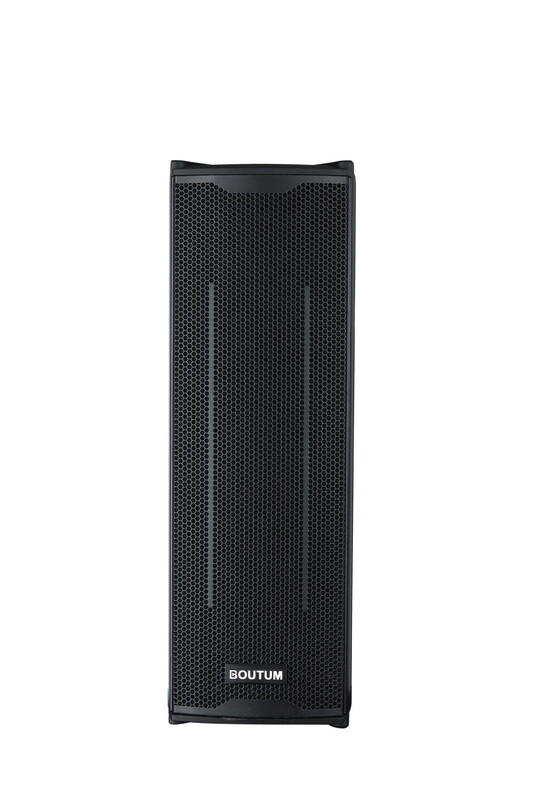

Q603M product parameters

Rated power (W): 280

Impedance (Ω): 4

Diffusion angle: 100×100

Sensitivity (dB): 93

Maximum sound pressure level (dB): 122

Frequency response (Hz): 40-20K

Box material: aluminum alloy

Box size (W×D×H): 187×244×561.8mm

Unit structure: LF:38Fe@2 HF:25Fe

Packaging volume (m3): 0.06

Net weight (kg): 11.5

Gross weight (kg): 13.5

Suspension: Yes

Q603M features:

1. It is composed of two 6.5-inch 38mm voice coil ferrite full-range units and one 25mm dome tweeter, with built-in passive crossover full-range speakers.

2. The 6.5-inch unit uses a hot-pressed polymer foam surround, which has good compliance and wide frequency bandwidth.

3. The system uses 2.5~6mm aluminum alloy extrusion and stretching, and the surface treatment is sandblasting electrophoresis, waterproof and UV-proof process. The strength is 4.5 times that of wooden shells, corrosion-resistant and has good performance.

4. The internal x and y axis multiple reinforcement ribs use aluminum alloy profiles.

5. There is a dovetail universal long slot on each side, extending outward connection function.

6. There are two sets of power input connectors on the back of each box, which can also be used for box combination.

7. There are multiple screws on the back to facilitate the installation of wall racks.

8. Considering the strength, the aluminum alloy mold is 2.5 times thickened at the speaker and back frame support position.

9. The top and low ends are closed with injection-molded nylon covers. Nylon is a polyamide fiber, which is widely used for its high mechanical strength, good toughness, and excellent properties of anti-collision and wear resistance.

10. Two 8mm screws are prepared for the cover, which is convenient for horizontal linear array combination. At the same time, there is a reserved pipe mouth at the base.

11. You can get perfect sound without matching a bass box.

Suitable for classrooms, conference rooms, lecture halls, shopping malls, high-speed rail stations, airports, cafes, home theaters, Hi-Fi appreciation, etc.

Functions: 1. Strengthen the rigidity of the shell

2. Can be used as a support point when hanging

3. External support bracket

4. Connection function when multiple speakers are used in combination
