i-6pro product description:

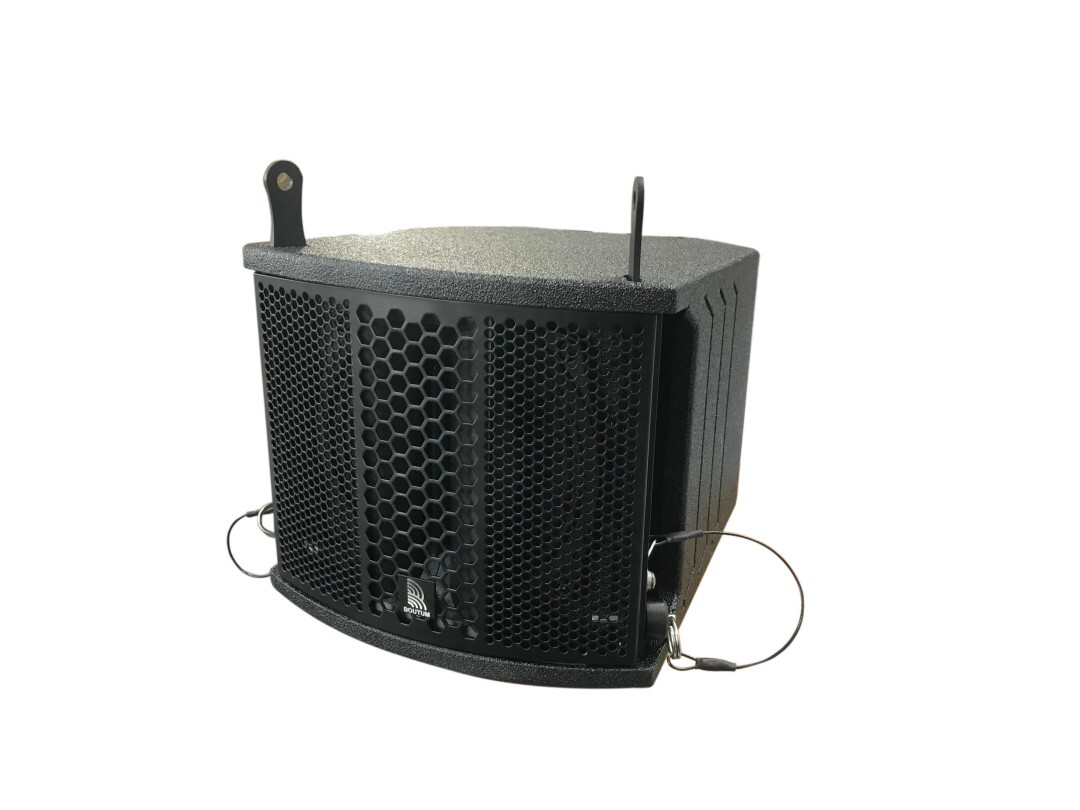

i-6pro is a typical vertical linear array speaker. It can be hung and stacked, or used alone. It is suitable for fixed installation and can also be used for mobile performances.

i-6pro uses a 6.5-inch coaxial unit with accurate center phase, compact arrangement to save space, small and exquisite speaker, and high sound pressure. The diffusion angle of the tweeter horn is 90°×10°, which effectively avoids sound interference. The impedance is 8 ohms, 2 can be connected in parallel, and 4 are recommended to be connected in series, with each two groups connected in parallel, and the impedance is also 8 ohms.

i-6pro has a complete connection system between multiple speakers, which is convenient for adjusting the angle and controlling the projection range. A magnetic latch is used between each two boxes, which is convenient for repeated use and avoids the steel ball of the spring latch falling off.

i-6pro's patented side inversion method allows the front unit to be arranged compactly and improves the sensitivity of the speaker. It can also be used as a handle during installation and transportation.

Recommended combination:

1. 2 i6pro and 1 Q380D+ form a small active sound reinforcement system.

2. 4 i6pro and 2 Q380D+ form a medium-sized active sound reinforcement system.

3. 4 i6pro hanging, with 18-inch bass, corresponding external power amplifier, form a fixed installation system.

4. Single scattered use, used for uniform sound reinforcement or sound supplement.

Product parameters:

Rated power (W): 150

Impedance (Ω): 8

Diffusion angle: 90×10

Sensitivity (dB): 98

Maximum sound pressure level (dB): 126

Frequency response (Hz): 55-19K

Box material: 12mm plywood

Box size (W×D×H): 223×290×238

Packaging size (W×D×H): 300×370×315

Unit structure: LF:38 HF:25

Net weight (kg): 5.5

Gross weight (kg): 6.5

Suspension: Yes
