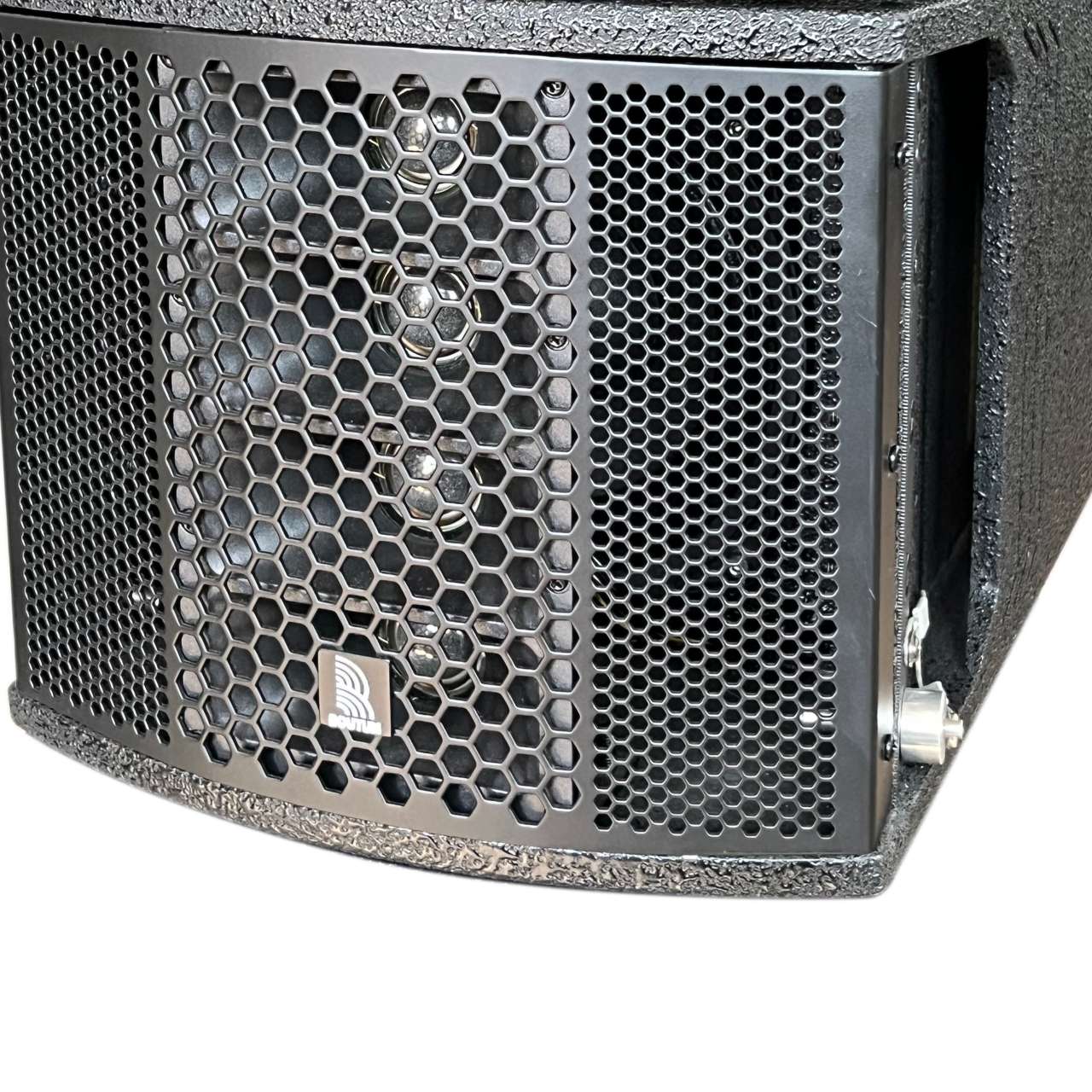

i-6 Product Description:

i-6 is specially designed for indoor sound reinforcement, and can be used for fixed installation or mobile use. It is a typical vertical linear array speaker, which can be hung and stacked, or used alone.

i-6 consists of a 6.5-inch full-range unit and 4 dome titanium film tweeters (with front horns). The frequency response is wide, the high frequency is delicate, and it has a typical Hi-Fi effect. The overall speaker has a built-in frequency division, 16 ohms, and up to 4 can be used in parallel, saving power amplifiers and simplifying the system.

i-6 has a complete connection system between multiple speakers, which is convenient for adjusting the angle and controlling the projection range. A magnetic latch is used between every two boxes, which is convenient for repeated use and also avoids the steel ball of the spring latch from falling off.

i-6's patented side inversion method allows the front units to be arranged compactly and improves the sensitivity of the speaker. It can also be used as a handle during installation and transportation.

Product parameters:

Rated power (W): 120

Impedance (Ω): 16

Diffusion angle: 100×15

Sensitivity (dB): 92

Maximum sound pressure level (dB): 113

Frequency response (Hz): 48-19K

Box material: 12mm plywood

Box size (W×D×H): 251×322×219

Unit structure: LF:38Fe HF:25ND@4

Packing volume (m3): 0.05

Net weight (kg): 6.3

Gross weight (kg): 7.5

Suspension: Yes
