Product Description

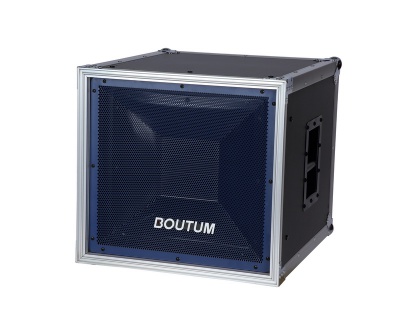

TH75 is an independent tweeter speaker composed of a 74.4mm compression tweeter driver and a self-developed long-range horn. The shell adopts the aviation cabinet structure design, which can be easily used with the AR series speakers of the aviation cabinet to form a building block speaker system, which can improve the treble range.

Use oblique insertion and concealed cast aluminum terminals to increase the life of the equipment (patented project).

National patented product: outdoor aviation cabinet audio.

Use 1.22mm Japanese fireproof board directly on the shell of the speaker, and install aluminum alloy parts on all corners to prevent damage to the product due to external force collision. At the same time, the spring jaw universal wheel provides great convenience for transportation.

Product parameters

Rated power (W): 120

Impedance (Ω): 8

Diffusion angle: 90×60

Sensitivity (dB): 106

Maximum sound pressure level (dB): 136

Frequency response (Hz): 750-19.5K

Box material: composite fireproof board

Box size (W×D×H): 498×466×556

Unit structure (mm): 75Fe

Packaging volume (m3): 0.13

Net weight (kg): 32

Gross weight (kg): 32

Suspension: No
